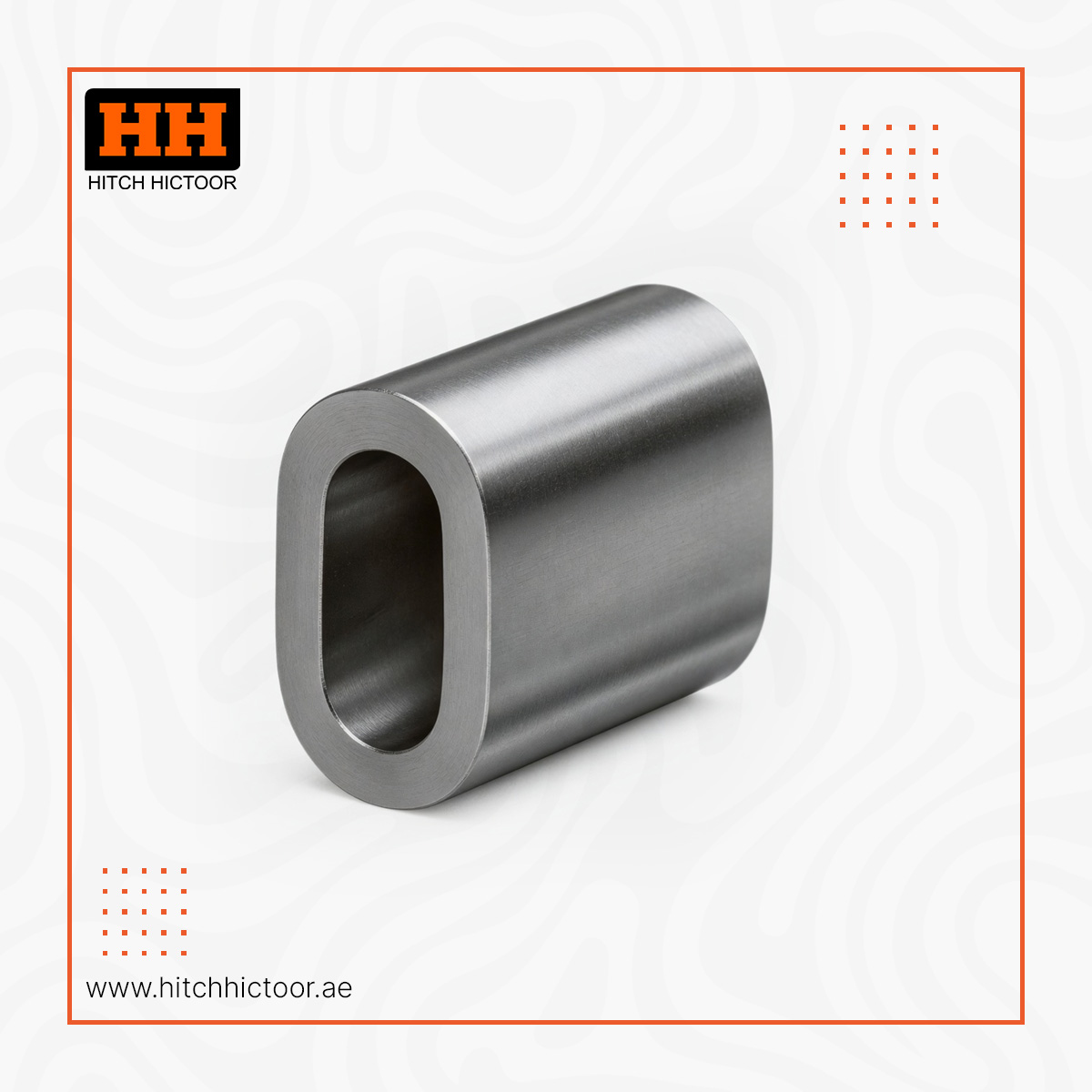

Aluminum ferrule ZEN
Technical information:

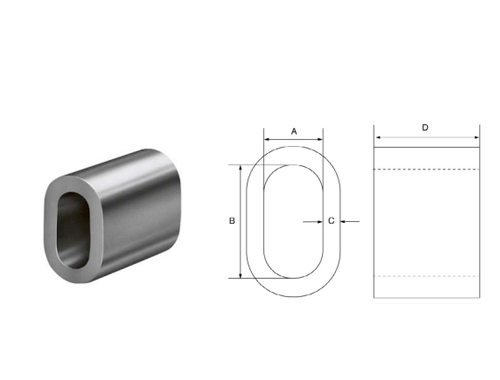

Dimension
Product code | ROPE DIA(IWRC core) | ROPE DIA(Fiber core) | A(mm) | B(mm) | C(mm) | D(mm) | NET WEIGHT(Kg / 1000) |
ZEN6 | 6 | 5 | 6.6 | 13.2 | 2.5 | 21 | 5.86 |
ZEN6.5 | 6.5 | 6 | 7.2 | 14.4 | 2.7 | 23 | 7.55 |
ZEN7 | 7 | 6.5 | 7.8 | 15.6 | 2.9 | 25 | 9.53 |
ZEN8 | 8 | 7 | 8.8 | 17.6 | 3.3 | 28 | 13.7 |
ZEN9 | 9 | 8 | 9.9 | 19.8 | 3.7 | 32 | 19.8 |
ZEN10 | 10 | 9 | 10.9 | 21.8 | 4.1 | 35 | 26.4 |
ZEN11 | 11 | 10 | 12.1 | 24.2 | 4.5 | 39 | 35.8 |
ZEN12 | 12 | 11 | 13.2 | 26.4 | 4.9 | 42 | 45.8 |
ZEN13 | 13 | 12 | 14.2 | 28.4 | 5.4 | 46 | 59.7 |
ZEN14 | 14 | 13 | 15.3 | 30.6 | 5.8 | 49 | 73.5 |
ZEN16 | 16 | 14 | 17.5 | 35 | 6.7 | 56 | 111 |
ZEN18 | 18 | 16 | 19.6 | 39.2 | 7.6 | 63 | 159 |
ZEN20 | 20 | 18 | 21.7 | 43.4 | 8.4 | 70 | 217 |
ZEN22 | 22 | 20 | 24.3 | 48.6 | 9.2 | 77 | 292 |
ZEN24 | 24 | 22 | 26.4 | 52.8 | 10 | 91 | 376 |
ZEN26 | 26 | 24 | 28.5 | 57 | 10.9 | 91 | 481 |
ZEN28 | 28 | 26 | 31 | 62 | 11.7 | 98 | 603 |
ZEN30 | 30 | 28 | 33.1 | 66.2 | 12.5 | 105 | 739 |
ZEN32 | 32 | 30 | 35.2 | 70.4 | 13.4 | 112 | 897 |
ZEN34 | 34 | 32 | 37.8 | 75.6 | 14.2 | 119 | 1080 |
ZEN36 | 36 | 34 | 39.8 | 79.6 | 15 | 126 | 1275 |
ZEN38 | 38 | 36 | 41.9 | 83.8 | 15.8 | 133 | 1490 |
ZEN40 | 40 | 38 | 44 | 88 | 16.6 | 140 | 1734 |
ZEN42 | 42 | 40 | 46.2 | 92.4 | 17.5 | 147 | 2020 |
ZEN44 | 44 | 42 | 48.4 | 96.8 | 18.3 | 154 | 2314 |
ZEN46 | 46 | 44 | 50.6 | 101.2 | 19.2 | 161 | 2557 |
ZEN48 | 48 | 46 | 52.8 | 105.6 | 20 | 168 | 3010 |
ZEN50 | 50 | 48 | 55 | 110 | 20.8 | 175 | 3400 |
ZEN52 | 52 | 50 | 57.2 | 114.4 | 21.6 | 182 | 3813 |
ZEN54 | 54 | 52 | 59.4 | 118.8 | 22.5 | 189 | 4120 |
ZEN56 | 56 | 54 | 61.6 | 123.2 | 23.3 | 196 | 4772 |
ZEN58 | 58 | 56 | 63.8 | 127.6 | 24.2 | 203 | 5200 |
ZEN60 | 60 | 58 | 66 | 132 | 25 | 210 | 5880 |
