Electric Chain Hoist SHH-A Type M5

Technical information:

  • 3 Phase / 380 V / 50 HZ
  • Class IP 55 Protection System
  • Isolation Class F
  • Single / Dual speed
  • FEM 2m / ISO M5
  • Magnetic Braking Device
  • Anti phase protecting device
  • Upper and Lower Limit switch plus overload clutch
  • Emergency stop switch
  • 1 loading direction , 1 unloading direction

TECHNICAL DATA

Product Code Capacity Classification Duty Rating Lifting speed Hoist Motor Load Chain Dimension Load Chain Falls Net weight (kg) with 3m load Chain
(t) FEM/ISO (ED) ( m /min ) (Kw) (mm)
SHH-A-005-1S 0.5 2m/M5 40% 7.6 0.9 6.3 1 46
SHH-A-005-1D 26.6% 13.4% 7.6/2.5 0.9/0.3 54
SHH-A-010-1S 1 2m/M5 40% 5.0 1.1 8.0 1 50
SHH-A-010-1D 26.6% 13.4% 5.0/1.7 1.1/0.37 62
SHH-A-020-1S 2 2m/M5 40% 2.5 1.1 8.0 2 60
SHH-A-020-1D 26.6% 13.4% 2.5/0.85 1.1/0.37 73
SHH-A-030-1S 3 2m/M5 40% 6.0 3.0 11.2 1 102
SHH-A-030-1D 26.6% 13.4% 6.0/2.0 3.0/1.0 124
SHH-A-050-1S 5 2m/M5 40% 3.0 3.0 11.2 2 124
SHH-A-050-1D 26.6% 13.4% 3.0/1.0 3.0/1.0 146

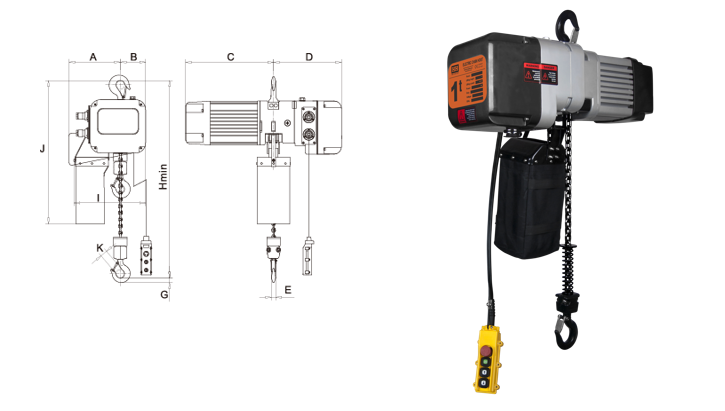

Product Code Capacity

(t)

 Hmin A B C D I J k
SHH-A-005-1S 0.5 410 142 102 329 307 276 610 31
SHH-A-005-1D 334
SHH-A-010-1S 1 460 142 102 329 307 276 630 38
SHH-A-010-1D 354
SHH-A-020-1S 2 650 185 59 329 307 276 720 45
SHH-A-020-1D 354
SHH-A-030-1S 2 525 185 165 358 336 430 780 45
SHH-A-030-1D 471
SHH-A-050-1S 3 860 240 110 358 336 430 870 61
SHH-A-050-1D 471
