Electric Chain Hoist SHK-AM With Trolley Type M4

Technical information:

  • 3 Phase / 380 V / 50 HZ
  • Class IP 54 Protection System
  • Isolation Class F
  • Single / Dual speed
  • FEM 1Am / ISO M4
  • Magnetic Braking Device
  • Anti phase protecting device
  • Upper and Lower Limit switch plus overload clutch
  • Emergency stop switch
  • 2Traveling Directions , 1 loading direction , 1 unloading direction

TECHNICAL DATA

Product Code Capacity Classification Duty Rating Lifting speed Hoist Motor Travelling speed Trolley Motor Beam Flange Load Chain Dimension Load Chain Falls Net weight (kg) with 3m load Chain
(t) FEM/ISO (ED) (m /min) (Kw) (m/min) Kw (mm) (mm)
SHk-AM-005-1S 0.5 1Am/M4 30% 7.2 1.1 11 0.4 75-178 6.3 1 83
SHK-AM-005-1D 20% 10% 7.2/2.4 1.1/0.37 90
SHK-AM-010-1S 1 1Am/M4 30% 6.8 1.5 11 0.4 75-178 7.1 1 101
SHK-AM-010-1D 20% 10% 6.8/2.3 1.5/0.5 111
SHK-AM-020-1S 2 1Am/M4 30% 3.4 1.5 11 0.4 82-178 7.1 2 116
SHK-AM-020-1D 20% 10% 3.4/1.1 1.5/0.5 126
SHK-AM-020-1S 2 1Am/M4 30% 6.6 3.0 11 0.4 81-178 10 1 153
SHK-AM-020-1D 20% 10% 6.6/2.2 3.0/1.0 171
SHK-AM-030-1S 3 1Am/M4 30% 3.3 3.0 11 0.75 100-178 10 2 205
SHK-AM-030-1D 20% 10% 3.3/1.1 3.0/1.0 225
SHK-AM-030-1S 3 1Am/M4 30% 5.6 3.0 11 0.75 100-178 11.2 1 189
SHK-AM-030-1D 20% 10% 5.6/1.8 3.0/1.0 209
SHK-AM-050-1S 5 1Am/M4 30% 2.8 3.0 11 0.75 112-178 11.2 2 221
SHK-AM-050-1D 20% 10% 2.8/0.9 3.0/1.0 241

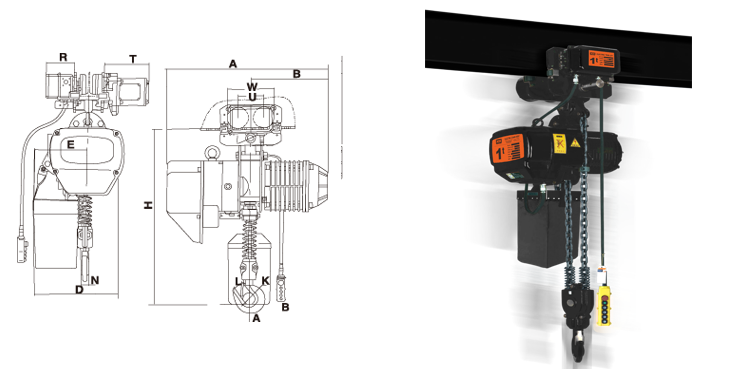

Product Code Capacity

(t)

 Hmin A B D E I K L N W U R T
SHk-AM-005-1S 0.5 530 460 230 288 165 31 31 29 20 180 100 140 159
SHK-AM-005-1D 545 260
SHK-AM-010-1S 1 650 520 260 300 176 42 42 32 24 207 113 142 231
SHK-AM-010-1D 582 280
SHK-AM-020-1S 2 835 520 260 300 236 49 49 40 30 237 127 142 231
SHK-AM-020-1D 582 280
SHK-AM-020-1S 2 800 615 295 430 265 49 49 40 30 237 127 142 231
SHK-AM-020-1D 670 313
SHK-AM-030-1S 3 950 615 295 430 320 59 59 48 35 265 140 142 231
SHK-AM-030-1D 670 313
SHK-AM-030-1S 3 845 615 295 430 265 59 59 48 35 265 140 142 231
SHK-AM-030-1D 670 313
SHK-AM-050-1S 5 1030 615 295 430 325 60 60 48 43 296 156 142 231
SHK-AM-050-1D 670 313
