- Alloy steel , quenched and tempered.
- Orange Painted Finish .
- Meets the W.L.L performance requirements of B.S EN 1677-1.
- Marked with material grade , manufacturers ID ,
Product ID Mark and traceability Code . - Mill Test Certifacte .
- 4 times Safety Factor.
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

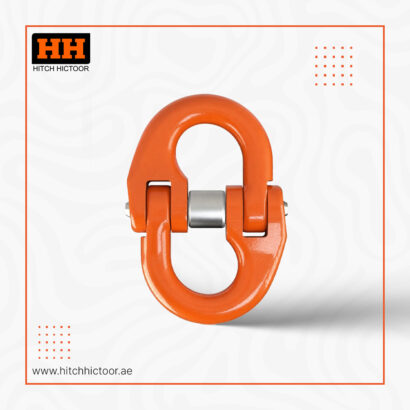

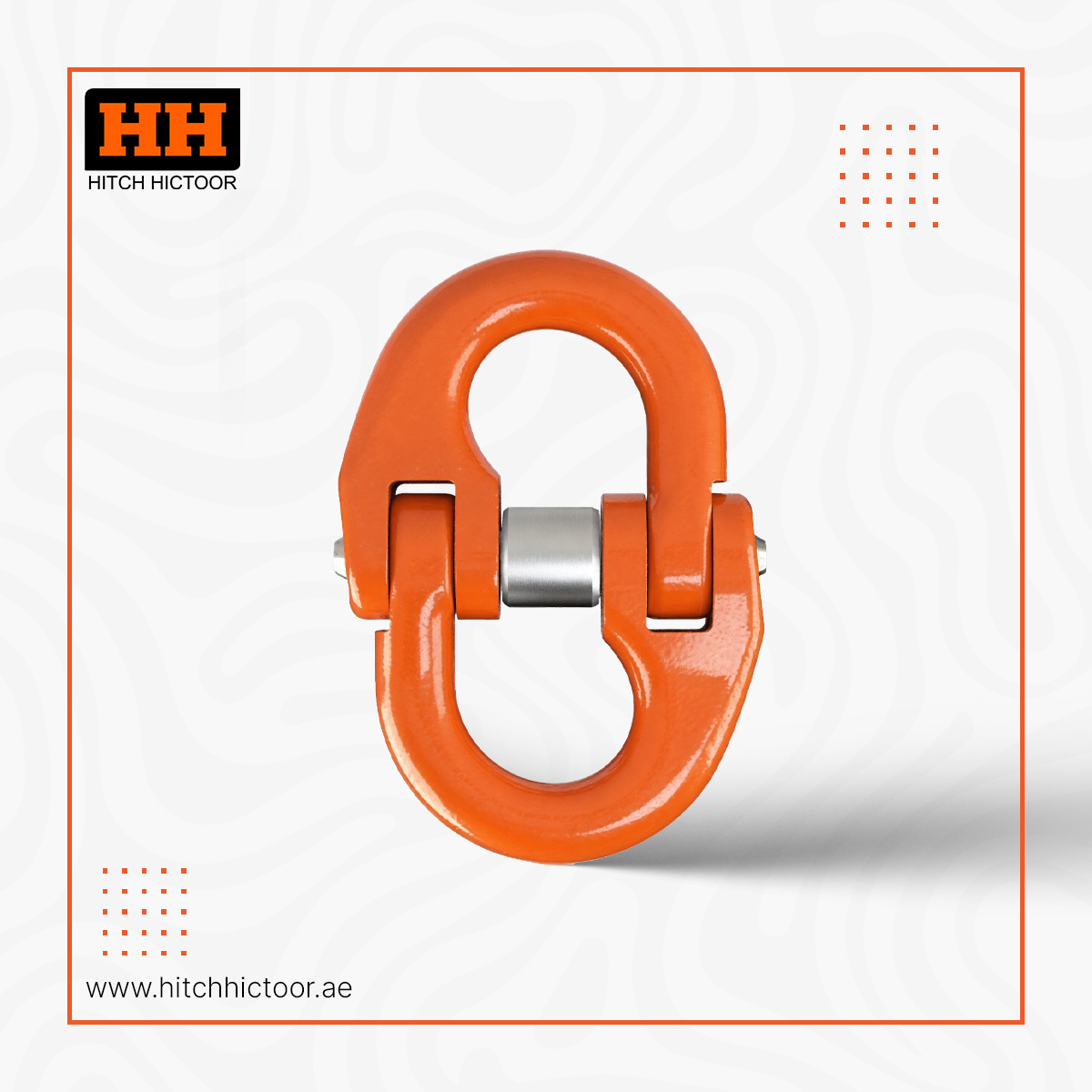

HCX Connecting Link G80
Technical information:

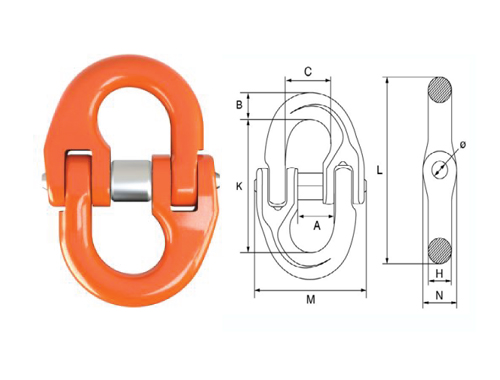

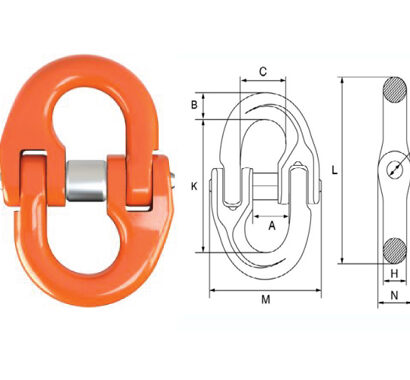

Dimension
Product code | SIZE(inch) | WLL(t) | A(mm) | B(mm) | C(mm) | H(mm) | K(mm) | L(MM) | M(mm) | N(mm) | NET WEIGHT(kg) |
HCX-7/8 | 5/16 | 2 | 20.5 | 9 | 24 | 8.8 | 58 | 77 | 55 | 14.8 | 0.16 |
HCX-10 | 3/8 | 3.15 | 26 | 12 | 28 | 11.5 | 69 | 92 | 69 | 17.8 | 0.30 |
HCX-13 | 1/2 | 5.30 | 30 | 15 | 35 | 15 | 85 | 115 | 86.6 | 25 | 0.70 |
HCX-16 | 5/8 | 8 | 35 | 19.8 | 39 | 19.8 | 85 | 142 | 103 | 30 | 1.1 |
HCX-18/20 | 3/4 | 12.5 4 | 41.8 | 24 | 46 | 22 | 118 | 166 | 120 | 34 | 1.8 |
HCX-22 | 7/8 | 15 | 49.5 | 26 | 57 | 26 | 138 | 190 | 147 | 40 | 3.2 |
HCX-26 | 1 | 21.2 | 58 | 31 | 67.5 | 30 | 154 | 216 | 174 | 44 | 4.5 |
HCX-32 | 1-1/4 | 31.5 | 67.5 | 38 | 84.5 | 37 | 201 | 277 | 214 | 56 | 9 |
