- Heavy duty construction allows safe and secure grip in the beam with wide shackle.
- Matt Black finish.
- Meets the performance requirements of BS-EN 13155.
- Minimum breaking load is 4 times the W.L.L.
- Easy and simple mounting.
- Adjustable to fit a wide range of flange widths and beams.
- Special jaw design applies the load away from the flange edge, thus flange stress.
- Test Certification available.
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

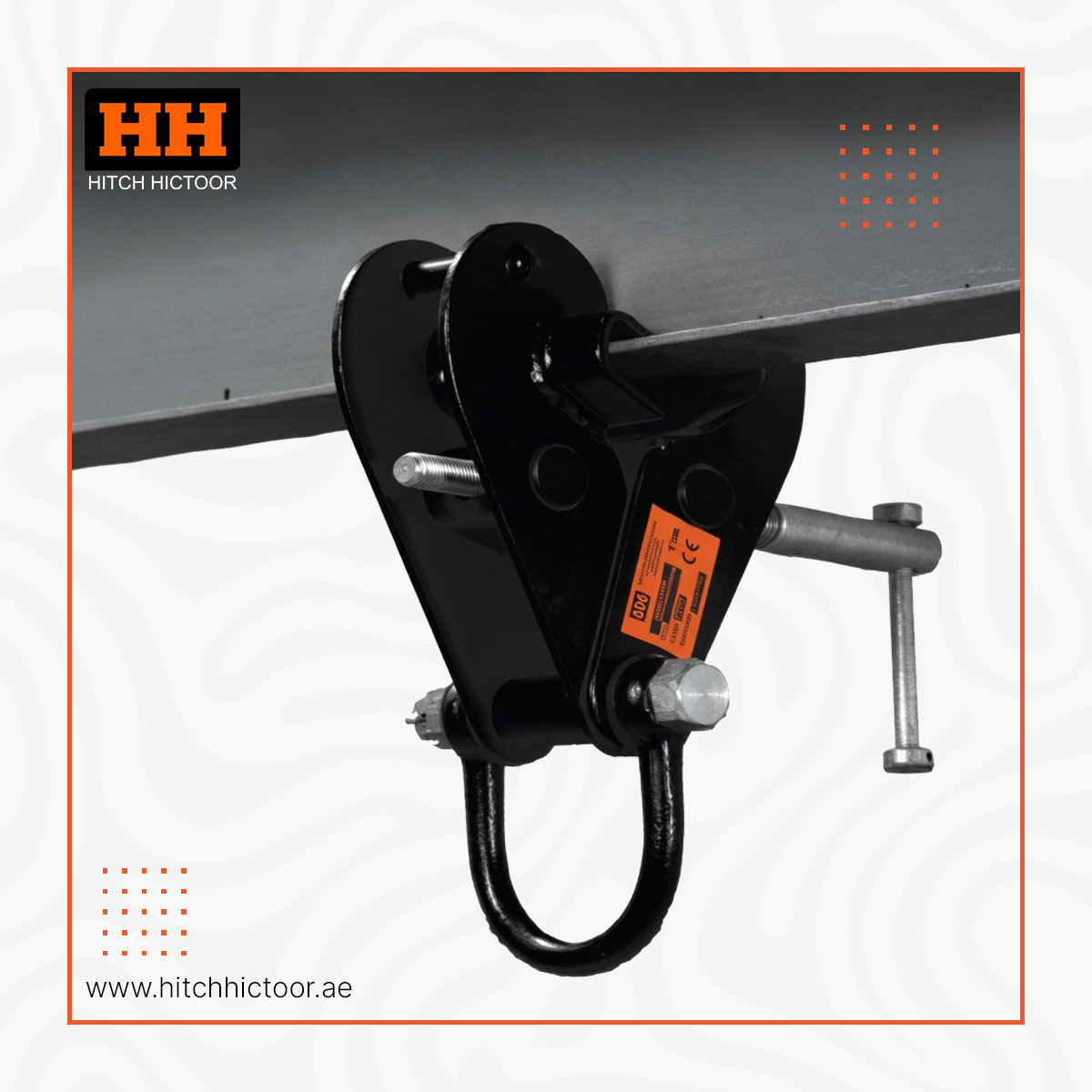

HH Adjustable Beam Clamp with Large Shackle – WJC Type

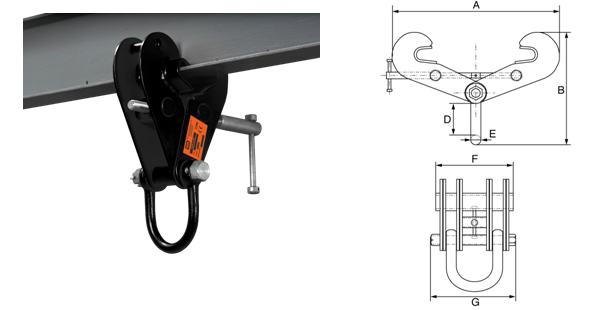

Dimension
| Product Code | W.L.L | Beam Range | A max | A Min | D | F | G | Weight |
| kgs | mm | mm | mm | mm | mm | mm | kgs / ea | |
| WJC1 | 1,000 | 75-220 | 180 | 330 | 88 | 122 | 138 | 5.5 |
| WJC2 | 2,000 | 80-320 | 180 | 330 | 91 | 122 | 156 | 6.6 |
| WJC3 | 3,000 | 80-320 | 265 | 466 | 108 | 150 | 195 | 12.5 |
| WJC5 | 5,000 | 80-320 | 265 | 466 | 108 | 150 | 237 | 17.5 |
| WJC10 | 10,000 | 80-350 | 285 | 520 | 176 | 200 | 310 | 23 |
