- Heavy duty construction allows safe and secure grip in the beam.
- Black Color finish.
- Meets the performance requirements of BS-EN 13155.
- Minimum breaking load is 4 times the W.L.L.
- Easy and simple mounting.
- Adjustable to fit a wide range of flange widths and beams.
- Special jaw design applies the load away from the flange edge, thus reducing flange stress.
- Test Certification available.
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

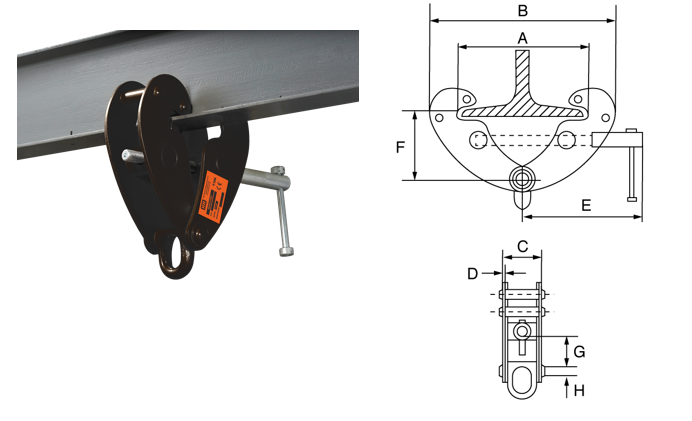

HH Adjustable Beam Clamp – YS Type
Dimension
| Product Code | W.L.L. | Beam Range | A max | B min | B max | C | D | E | F min | F max | G min | Weight |
| kgs | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kgs / ea | |
| YS1 | 1,000 | 75-220 | 295 | 185 | 400 | 80 | 4 | 225 | 90 | 165 | 25 | 3.8 |
| YS2 | 2,000 | 75-220 | 295 | 185 | 400 | 85 | 6 | 225 | 90 | 165 | 25 | 5 |
| YS3 | 3,000 | 80-320 | 365 | 240 | 520 | 117 | 8 | 258 | 135 | 225 | 45 | 9 |
| YS5 | 5,000 | 80-320 | 365 | 240 | 520 | 125 | 10 | 258 | 135 | 225 | 45 | 11 |
| YS10 | 10,000 | 90-320 | 365 | 255 | 520 | 158 | 12 | 280 | 160 | 230 | 50 | 16 |
