- High tensile steel.
- Hot dipped galvanised Finish .
- Temperature range -20 C to +200 C .
- Marked with material grade , manufacturers ID , Product ID Mark and
traceability Code . - Mill Test Certifacte .
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

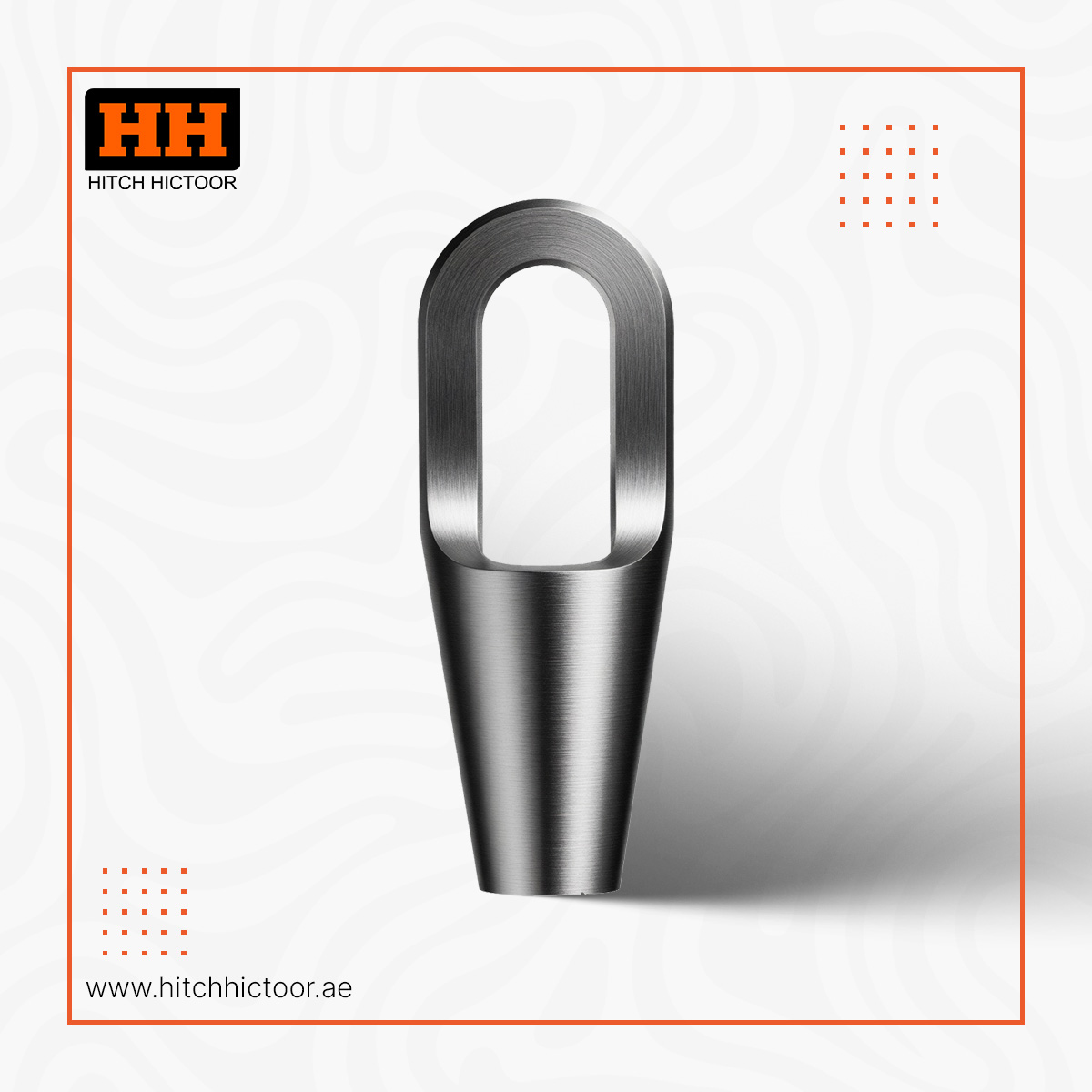

HH Closed Spelter Socket HHCSS
Technical information:

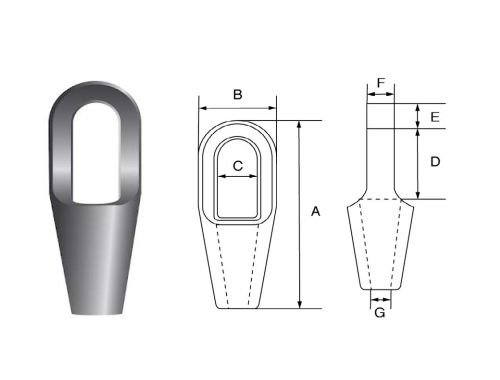

Dimension
Product code | WIRE ROPE DIA(mm) | M.B.L(t) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | NET WEIGHT(Kg) |
HHCSS7 | 6-7 | 8 | 101 | 37 | 22 | 40 | 11 | 13 | 9 | 0.3 |
HHCSS10 | 8-10 | 12 | 119 | 43 | 25 | 48 | 14 | 17.5 | 12 | 0.5 |
HHCSS13 | 11-13 | 20 | 140 | 52 | 30 | 58 | 18 | 23.5 | 15 | 0.75 |
HHCSS16 | 14-16 | 25 | 162 | 68 | 37 | 66 | 21 | 26 | 17.5 | 1.5 |
HHCSS19 | 18-19 | 40 | 194 | 76 | 42 | 78 | 27 | 32 | 21.5 | 2.4 |
HHCSS22 | 20-22 | 55 | 224 | 92 | 47 | 90 | 33 | 38 | 24 | 3.6 |
HHCSS26 | 23-26 | 75 | 253 | 104 | 57 | 103 | 36 | 44 | 28 | 5.8 |
HHCSS30 | 27-30 | 90 | 282 | 114 | 63 | 116 | 39 | 51 | 32 | 7 |
HHCSS36 | 31-36 | 125 | 312 | 127 | 70 | 130 | 43 | 57 | 38 | 10.5 |
HHCSS39 | 37-39 | 150 | 358 | 136 | 79 | 155 | 51 | 63 | 41 | 13 |
HHCSS42 | 40-42 | 170 | 390 | 146 | 83 | 171 | 55 | 70 | 44 | 17 |
HHCSS48 | 43-48 | 225 | 443 | 171 | 93 | 198 | 55 | 76 | 51 | 26 |
HHCSS54 | 49-54 | 280 | 502 | 193 | 100 | 224 | 62 | 82 | 57 | 37.5 |
HHCSS60 | 55-60 | 360 | 548 | 216 | 112 | 247 | 73 | 92 | 63 | 50 |
HHCSS68 | 61-68 | 425 | 597 | 241 | 140 | 270 | 70 | 102 | 73 | 65 |
HHCSS75 | 69-75 | 460 | 644 | 273 | 159 | 286 | 70 | 124 | 79 | 94 |
HHCSS80 | 76-80 | 560 | 686 | 292 | 171 | 298 | 83 | 133 | 86 | 115 |
HHCSS86 | 81-86 | 625 | 743 | 311 | 184 | 311 | 102 | 146 | 92 | 145 |
HHCSS93 | 87-93 | 720 | 788 | 330 | 197 | 330 | 102 | 159 | 99 | 168 |
HHCSS102 | 94-102 | 875 | 845 | 362 | 216 | 356 | 108 | 178 | 108 | 210 |
HHCSS115 | 108-115 | 1200 | 1000 | 405 | 235 | 425 | 125 | 190 | 125 | 330 |
