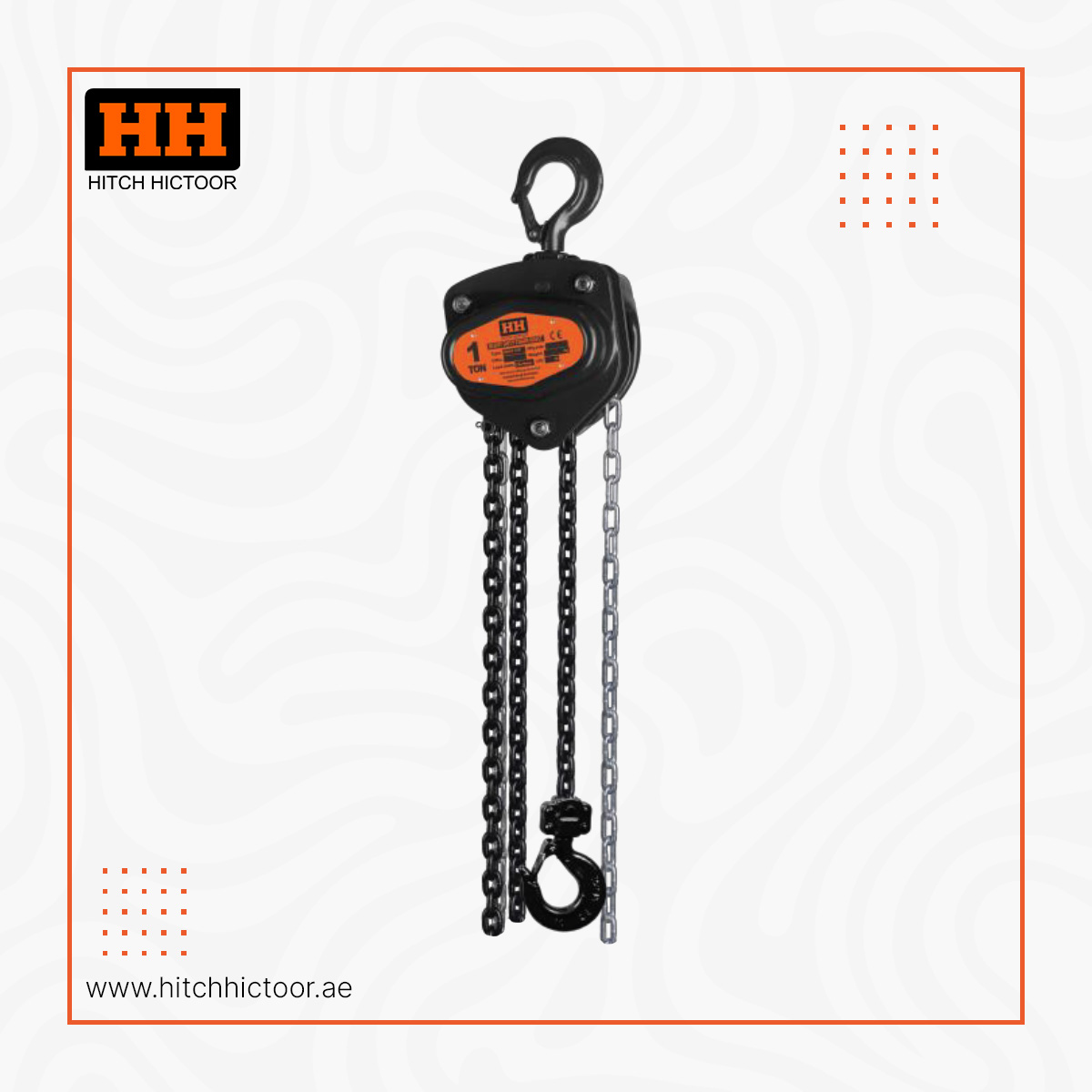

HH Heavy Duty Chain Hoist – HDCH 619
- Each hoist is made with high performance materials for extra durability.
- Black Color finish with high strength steel frame.
- Meets the W.L.L. performance requirements of BS EN 13157.
- Minimum break load 4 times the W.L.L.
- Grade 80 (T – Fine tolerance calibrated) load chain, meets the WLL performance requirements of BSEN 818-7.
- Spur gear efficiency reduces operator effort , Double guide rollers enhance performance , safety and reliability .
- Top and bottom hooks with heavy duty cast catches.
- Over load protection system.
- Available in a variety of heights of lift.
- Test Certificate Available.

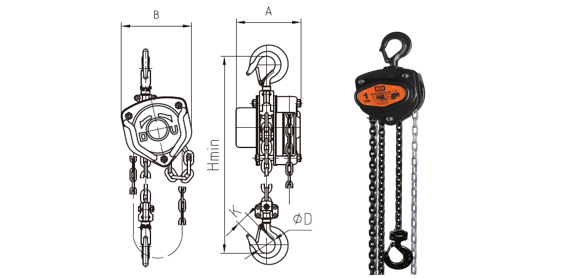

Dimension
| Product Code |
Capacity |
A |
B |
D |
H |
| 3 mtr |
kgs |
mm |
mm |
mm |
mm |
| HDCH 61900500 |
500 |
137.5 |
137 |
35 |
270 |
| HDCH 61901000 |
1,000 |
146.5 |
162 |
35.5 |
317 |
| HDCH 61901500 |
1,500 |
170 |
183 |
45 |
399 |
| HDCH 61902000 |
2,000 |
170 |
194 |
42.5 |
414 |
| HDCH 61903000 |
3,000 |
170 |
220 |
50 |
455 |
| HDCH 61905000 |
5,000 |
190.4 |
288 |
65 |
636 |
| HDCH 61910000 |
10,000 |
190 |
384 |
85 |
798 |
| HDCH 61920000 |
20,000 |
209 |
625 |
110 |
890 |
| HDCH 61930000 |
30,000 |
312 |
691 |
110 |
1380 |
TECHNICAL DATA
| Capacity |
Effort req’d to lift max load |
Load Chain Dia |
Falls of Load Chain |
Weight (3 mtr HOL) |
| kgs |
N |
mm |
|
kgs |
| 500 |
200 |
6 |
1 |
8.7 |
| 1,000 |
320 |
6 |
1 |
10.8 |
| 1,500 |
360 |
8 |
1 |
15.2 |
| 2,000 |
365 |
8 |
1 |
18 |
| 3,000 |
385 |
8 |
2 |
24.5 |
| 5,000 |
435 |
10 |
2 |
366 |
| 10,000 |
435 |
10 |
4 |
78 |
| 20,000 |
435×2 |
10 |
8 |
164 |
| 30,000 |
435×2 |
10 |
12 |
220 |
