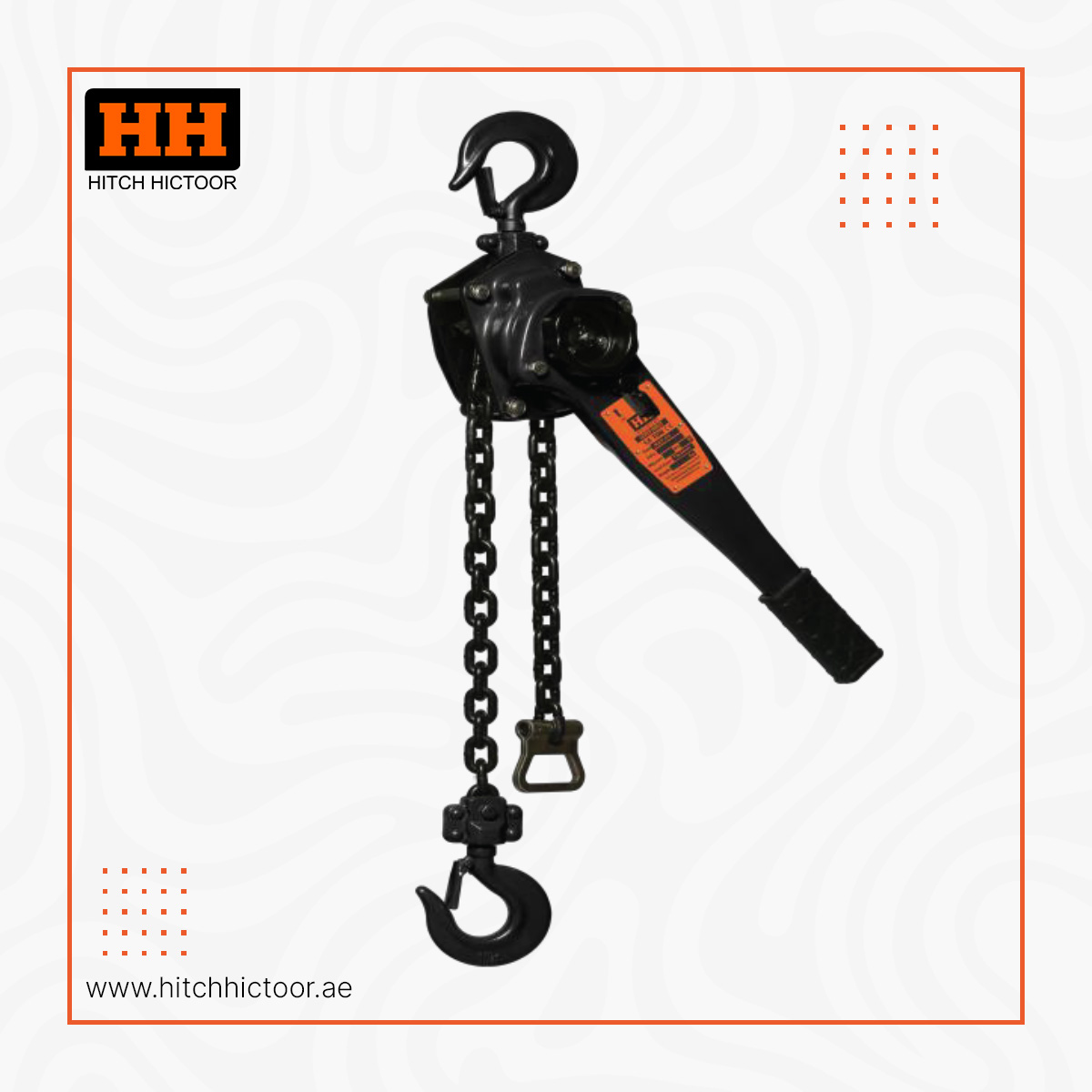

HH Heavy Duty Lever Hoist – HDLH 619
- Lightweight, robust and ensures reliability in every position. It is the ideal tool for lifting, tensioning and lashing.
- Meets the WLL performance requirements of BS EN 13157.
- Black Color finish.
- Heavy Duty Robust Casing protects gears and brake system.
- Easy to use 360 degree Handle rotation with short stroke to ratchet load.
- Grade 80 (T – Fine tolerance calibrated) load chain meets the WLL performance requirements of BSEN 818-7.
- Test Certificate Available.

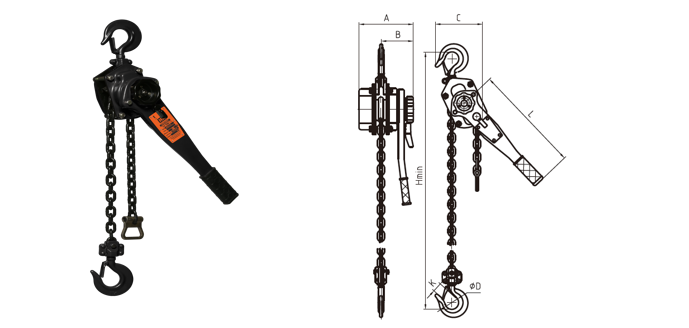

Dimension
| Code |
Capacity |
A |
B |
C |
D |
H |
L |
K |
Load Chain |
Falls of Chain |
| (1.5m HOL) |
(kgs) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
|
| HDLH 61900750 |
750 |
148 |
55 |
135 |
37 |
320 |
290 |
26 |
6 |
1 |
| HDLH 61901500 |
1500 |
176 |
102 |
162 |
45 |
380 |
420 |
32.5 |
8 |
1 |
| HDLH 61903000 |
3000 |
195 |
109 |
211 |
50 |
480 |
420 |
37 |
10 |
1 |
| HDLH 61906000 |
6000 |
195 |
109 |
254 |
65 |
620 |
420 |
46 |
10 |
2 |
| HDLH 61909000 |
9000 |
195 |
109 |
319 |
85 |
700 |
420 |
50 |
10 |
3 |
TECHNICAL DATA
| Capacity |
Running Test Load |
Effort Req’d to Lift Rated Load |
Weight |
Extra Weight Per Mtr Lift |
| (kgs) |
(kN) |
(N) |
(Kgs) |
(kgs) |
| 750 |
9.2 |
140 |
6.3 |
0.8 |
| 1500 |
18.4 |
220 |
11 |
1.4 |
| 3000 |
36.8 |
320 |
18.7 |
2.2 |
| 6000 |
73.5 |
340 |
30 |
4.3 |
| 9000 |
110.3 |
360 |
41.2 |
6.5 |
