- High tensile steel.
- Hot dipped galvanised Finish .
- Temperature range -20 C to +200 C .
- Marked with material grade , manufacturers ID , Product ID Mark and
traceability Code . - Mill Test Certifacte .
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

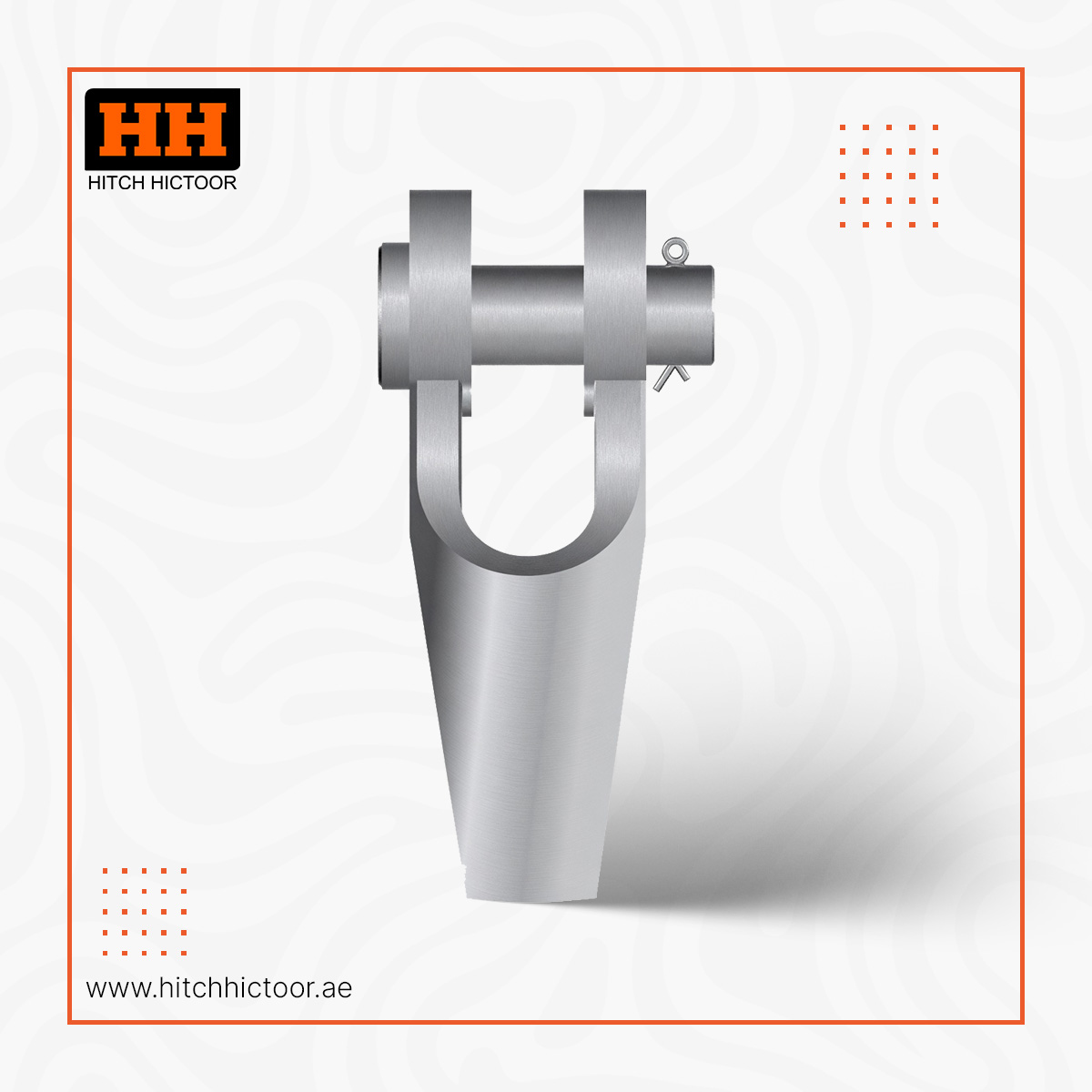

HH Open Spelter Socket HHOSS
Technical information:

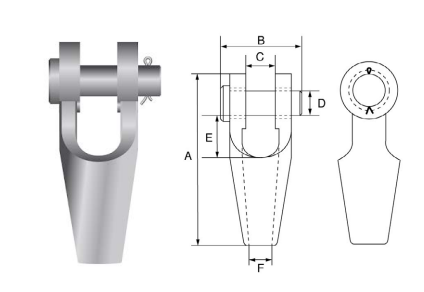

Dimension
Product code | WIRE ROPE DIA(mm) | M.B.L(t) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | NET WEIGHT(Kg) |
HHOSS7 | 6-7 | 8 | 109 | 51 | 19 | 16 | 33 | 9 | 0.4 |
HHOSS10 | 8-10 | 12 | 124 | 62 | 21 | 21 | 34 | 12 | 0.7 |
HHOSS13 | 11-13 | 20 | 143 | 66 | 26 | 25 | 37 | 15 | 2.1 |
HHOSS16 | 14-16 | 25 | 172 | 82 | 33 | 30 | 49 | 19 | 1.8 |
HHOSS19 | 18-19 | 40 | 205 | 95 | 38 | 35 | 58 | 21 | 3.0 |
HHOSS22 | 20-22 | 55 | 235 | 110 | 44 | 41 | 68 | 24 | 4.6 |
HHOSS26 | 23-26 | 75 | 275 | 130 | 51 | 51 | 75 | 28 | 8.0 |
HHOSS30 | 27-30 | 90 | 306 | 144 | 57 | 57 | 85 | 32 | 11.0 |
HHOSS36 | 31-36 | 125 | 338 | 155 | 63 | 64 | 95 | 38 | 16.0 |
HHOSS39 | 37-39 | 150 | 394 | 178 | 76 | 70 | 127 | 41 | 22.0 |
HHOSS42 | 40-42 | 170 | 418 | 187 | 76 | 76 | 127 | 44 | 27.0 |
HHOSS48 | 43-48 | 225 | 468 | 213 | 89 | 89 | 134 | 51 | 41.0 |
HHOSS54 | 49-54 | 280 | 552 | 240 | 101 | 95 | 181 | 57 | 64.0 |
HHOSS60 | 55-60 | 360 | 598 | 270 | 113 | 108 | 196 | 63 | 88.0 |
HHOSS68 | 61-68 | 425 | 654 | 303 | 127 | 121 | 213 | 73 | 125 |
HHOSS75 | 69-75 | 460 | 696 | 349 | 133 | 127 | 216 | 79 | 155 |
HHOSS80 | 76-80 | 560 | 737 | 371 | 146 | 133 | 220 | 86 | 187 |
HHOSS86 | 81-86 | 625 | 788 | 391 | 159 | 140 | 228 | 92 | 230 |
HHOSS93 | 87-93 | 720 | 852 | 411 | 171 | 152 | 242 | 99 | 260 |
HHOSS102 | 94-102 | 875 | 914 | 447 | 191 | 178 | 254 | 108 | 400 |
HHOSS115 | 108-115 | 1200 | 1160 | 489 | 206 | 193 | 369 | 124 | 660 |
