- Carbon steel, light and robust design.
- Matt black finish.
- Minimum breaking load is 4 times the W.L.L.
- Hooks are supplied with heavy duty safety catches.
- 3” and 4.1/2” blocks are fitted with bronze bush. All other sizes are fitted with roller bearings.
- Suitable for all types of industrial and commercial lifting and lowering applications.
- W.L.L. is on the head fitting.
- Test Certification available.
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

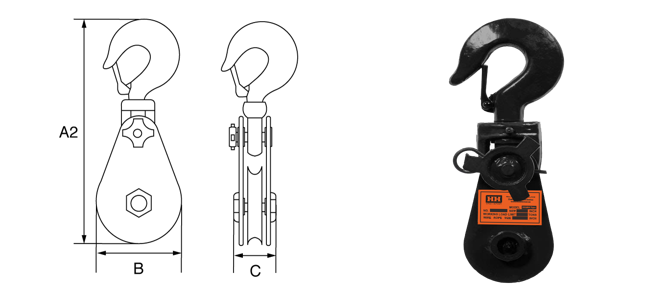

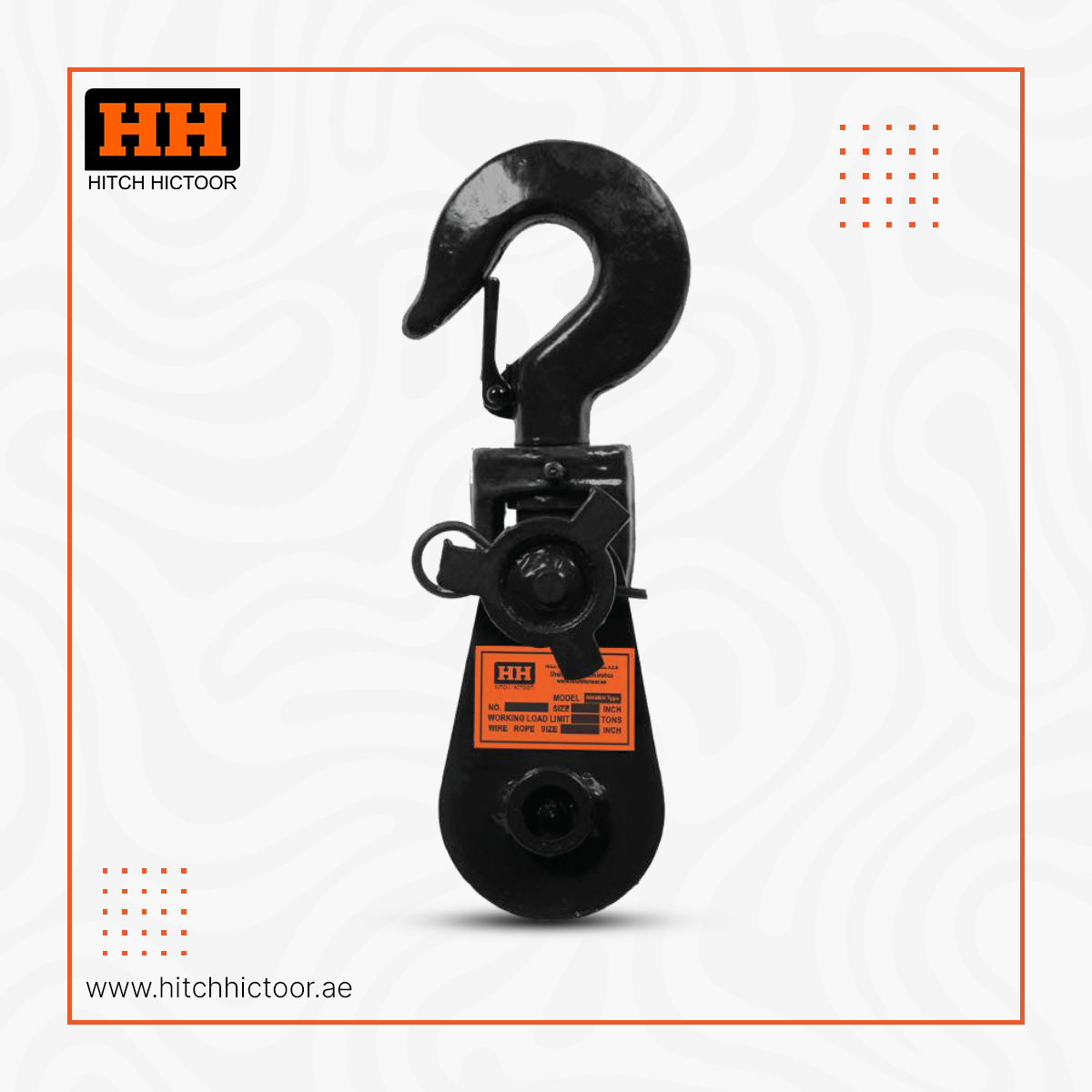

HH Wire Rope Snatch Block Hook Head – HHSBH
Dimension
| Product Code | Sheave Dia | W.L.L. | Wire Dia | A2 | B | C | Weight |
| inches | t | mm | mm | mm | mm | kgs | |
| HHSBH32 | 3 | 2 | 7-9 | 286 | 82 | 70 | 4 |
| HHSBH44 | 4.1/2 | 4 | 10-12 | 345 | 120 | 70 | 6 |
| HHSBH46 | 6 | 4 | 16-18 | 412 | 160 | 70 | 8 |
| HHSBH6816 | 6 | 8 | 16-18 | 480 | 160 | 93 | 15 |
| HHSBH6820 | 6 | 8 | 20-22 | 475 | 160 | 93 | 14 |
| HHSBH88 | 8 | 8 | 20-22 | 528 | 210 | 93 | 20 |
| HHSBH1012 | 10 | 12 | 20-22 | 679 | 260 | 114 | 36 |
| HHSBH815 | 8 | 15 | 20-22 | 663 | 210 | 98 | 34 |
| HHSBH1215 | 12 | 15 | 24-26 | 884 | 310 | 133 | 54 |
| HHSBH1422 | 14 | 22 | 28-32 | 952 | 365 | 140 | 112 |
| HHSBH1630 | 16 | 30 | 32-35 | 1085 | 415 | 155 | 170 |
| HHSBH2030 | 20 | 30 | 32-35 | 1177 | 514 | 162 | 213 |
| HHSBH2450 | 24 | 50 | 46-50 | 1445 | 625 | 240 | 408 |
