- Grade 80 Alloy steel , quenched and tempered.
- Orange Painted Finish .
- Minimum breaking load is 4 times the W.L.L.
- 2 needle roller thrust bearing for rotation under load .
- Marked with CE , W.L.L , material grade , Manfacturers ID and size .
- Mill Test Certifacte .
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

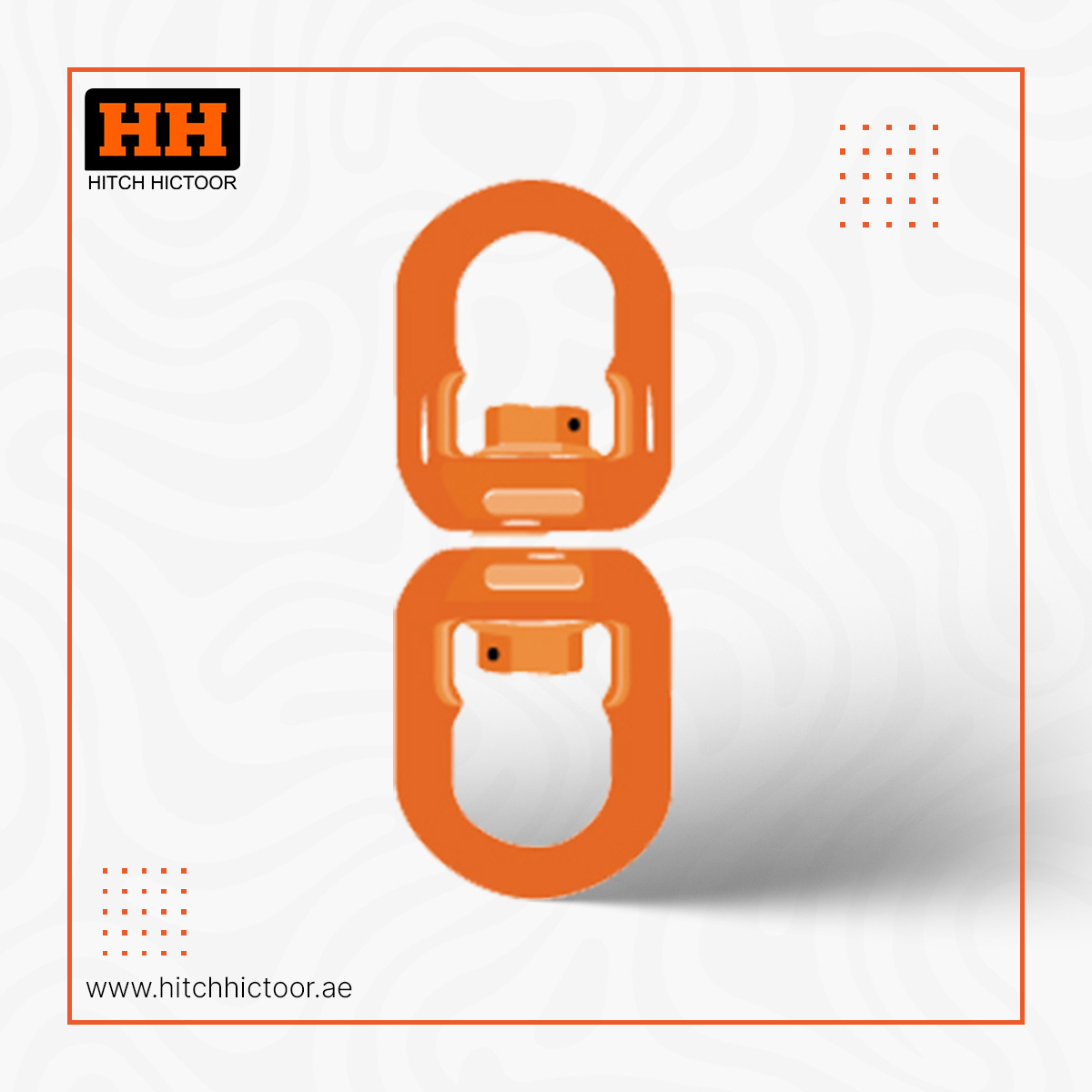

HHRS Regular Swivel G80
Technical information:

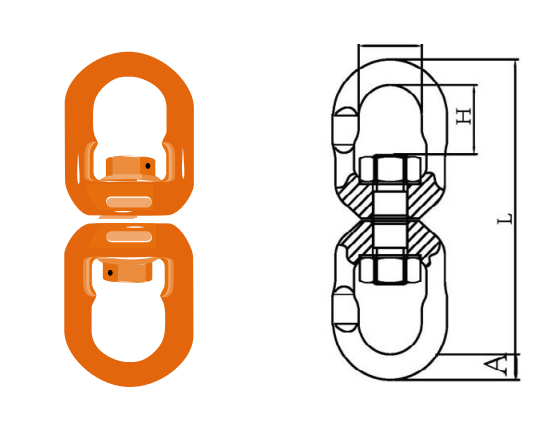

Dimension
Product code | WLL(t) | A(mm) | D(mm) | H(mm) | L(mm) | NET WEIGHT(kg) |
HHRS2 | 2 | 12.5 | 35.5 | 28.5 | 164 | 0.6 |
HHRS3.15 | 3.15 | 15 | 42 | 34.5 | 194.5 | 1.5 |
HHRS5.3 | 5.3 | 18 | 50 | 43.5 | 216.5 | 1.75 |
HHRS8 | 8 | 21.5 | 61 | 56 | 289 | 4.52 |
