- Drop forged , Cast steel , quenched and tempered.
- orange painted finsh .
- fitted with grab hooks.
- special securing device prevents threads coming out.
- Marked with L.C , Manfucters ID , size and product ID.
- Mill test certificate .
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

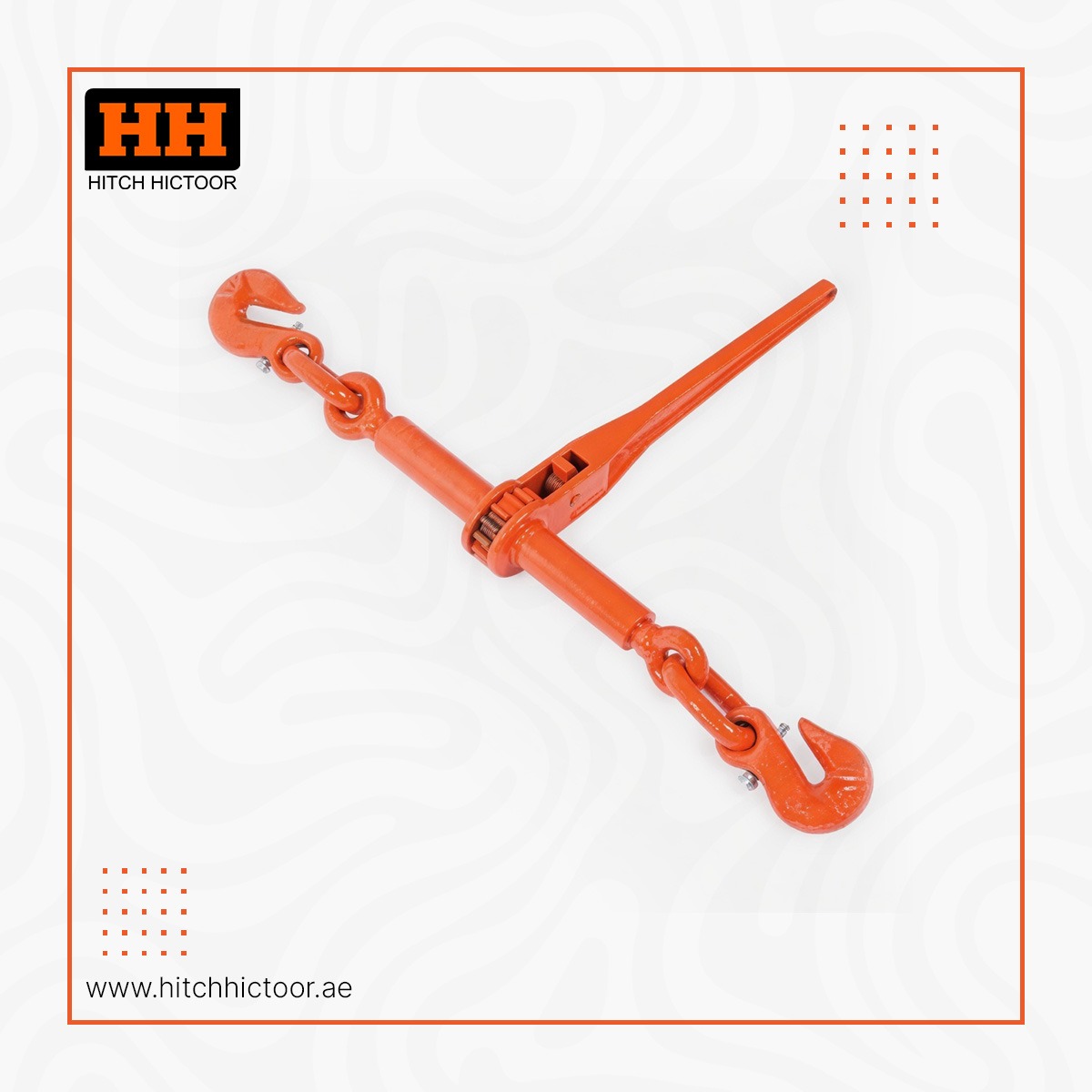

HLBR Ratched Load Binder G80
Technical information:
Dimension
Product code | Chain Dia(Inch) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | Take Up(mm) |
HHLBR810 | 5/16 - 3/8 | 355 | 66 | 16 | 254 | 750 | 580 | 13 | 170 |
HHLBR1013 | 3/8 - 1/2 | 355 | 66 | 16 | 254 | 770 | 600 | 16 | 170 |
HHLBR1316 | 1/2 - 5/8 | 355 | 66 | 16 | 254 | 840 | 685 | 19 | 155 |
Product code | Chain Dia(Inch) | Lashing | M.B.L(lbs) | NET WEIGHT(kg) |
HHLBR810 | 5/16 - 3/8 | 2450 | 8575 | 4.82 |
HHLBR1013 | 3/8 - 1/2 | 4200 | 14700 | 5.92 |
HHLBR1316 | 1/2 - 5/8 | 5900 | 20650 | 7.85 |
