- Alloy steel , quenched and tempered.
- Orange Painted Finish .
- Designed for use with 1 or 2 leg slings.
- Marked with material grade , manufacturers ID ,
Product ID Mark and traceability Code . - Mill Test Certifacte .
- 4 times Safety Factor
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

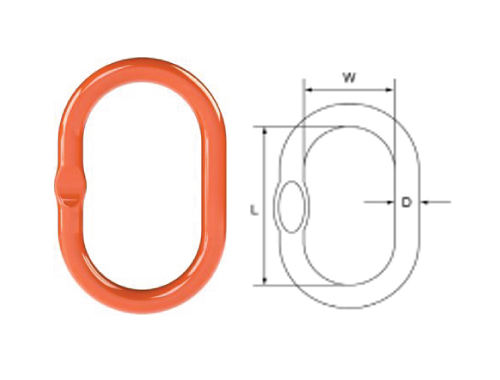

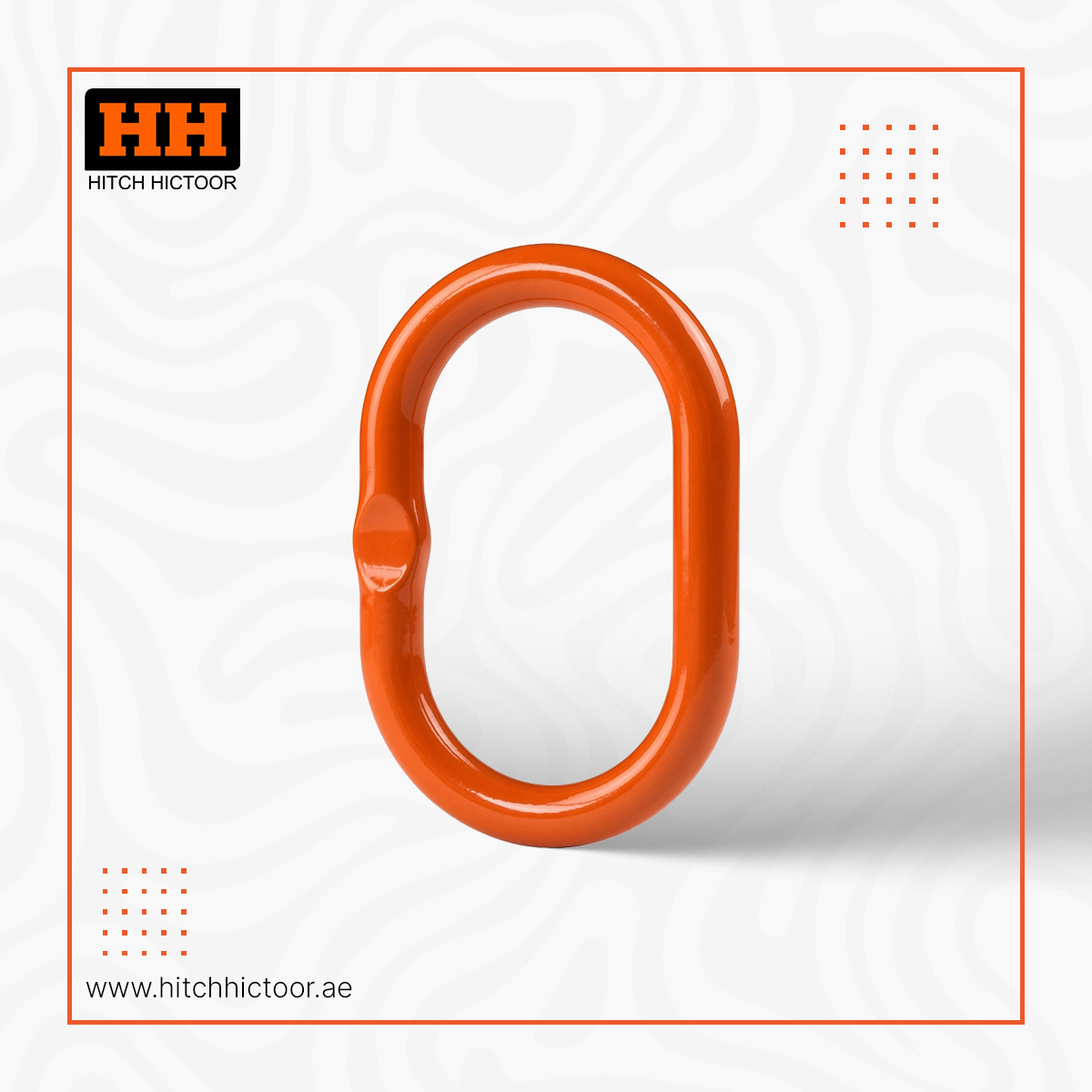

HML Master Link G80
Technical information:
Dimension
Product code | SIZE(inch) | WLL(t) | D(mm) | L(mm) | W(mm) | NET WEIGHT(kg) |
HML14 | 1/2 | 2.50 | 14 | 100 | 60 | 0.38 |
HML18 | 11/16 | 4.00 | 18 | 160 | 90 | 0.85 |
HML20 | 3/4 | 6.50 | 20 | 160 | 90 | 1.20 |
HML22 | 7/8 | 8.00 | 22 | 180 | 100 | 1.63 |
HML25 | 1 | 11.50 | 25 | 270 | 140 | 2.13 |
HML28 | 1-1/8 | 12.50 | 28 | 270 | 140 | 3.81 |
HML32 | 1-1/4 | 16.00 | 32 | 270 | 140 | 5.05 |
HML36 | 1-3/8 | 24.00 | 36 | 285 | 155 | 6.83 |
HML40 | 1-1/2 | 25.00 | 40 | 300 | 160 | 8.90 |
HML45 | 1-3/4 | 31.50 | 45 | 340 | 180 | 12.80 |
HML50 | 2 | 45.00 | 50 | 390 | 215 | 17.30 |
