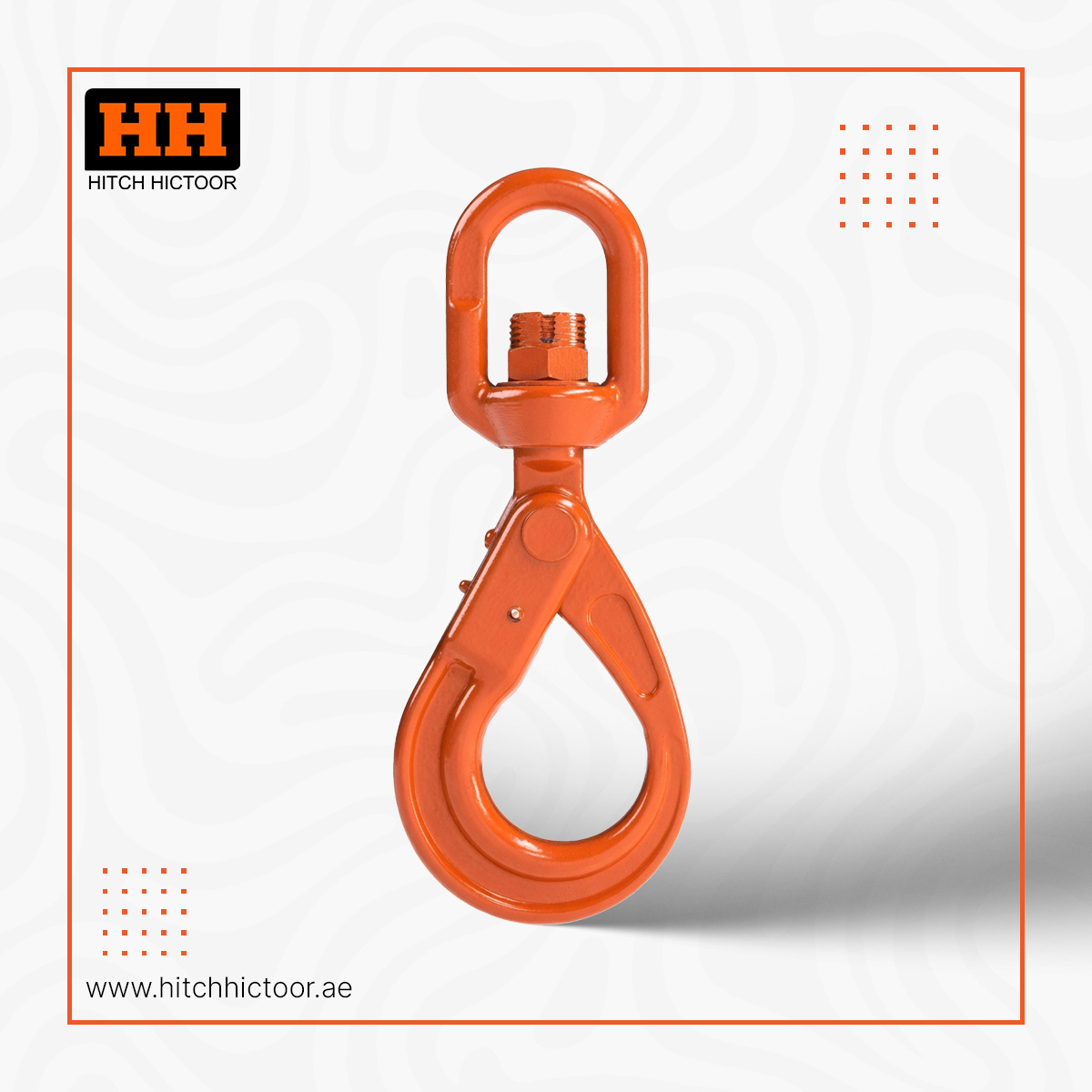

HSS swivel self locking hook G80
Technical information:

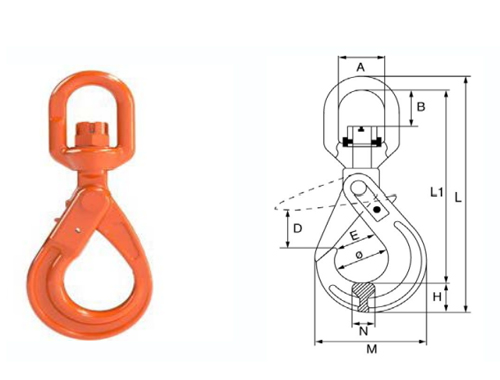

Dimension
Product code | SIZE(inch) | WLL(t) | A(mm) | B(mm) | C(mm) | E(mm) | H(mm) | L(mm) | L1(mm) | M(mm) | N(mm) | Q(mm) | NET WEIGHT(kg) |
HSS-7/8 | 5/16 | 2 | 36 | 29.5 | 39 | 35.8 | 29.5 | 228 | 189 | 87 | 20 | 44 | 1.15 |
HSS-10 | 3/8 | 3.15 | 42 | 35 | 48 | 48 | 30 | 270 | 224 | 108 | 26 | 58 | 1.86 |
HSS-13 | 1/2 | 5.30 | 50 | 41 | 65 | 52.5 4 | 40 | 324 | 267 | 122 | 33 | 70 | 3.51 |
HSS-16 | 5/8 | 8 | 61 | 56.8 | 65 | 63.3 | 50.5 | 406 | 335.6 | 168.8 | 36 | 86 | 7.33 |
HSS-18/20 | 3/4 | 12.5 4 | 72 | 63 | 85 | 86 | 55 | 460 | 378 | 185 | 50 | 97 | 10.3 |
HSS-22 | 7/8 | 15 | 97 | 98 | 80 | 76 | 67 | 564 | 466 | 202 | 52 | 98 | 17.5 |
HSS-26 | 1 | 21.2 | 123 | 115 | 125 | 96 | 75 | 661 | 544 | 239 | 60 | 110 | 23 |
