- For horizontal lifting and transporting of steel and concrete pipes.
- Compact shape and relatively low unit weight with a high lifting capacity.
- The surface is equipped with special plastic.
- Supplied in pairs.
- HML Master Link
- HMA Master Link assembly
- HCX connecting Link
- HCH Clevis Sling hook
- HCS Self locking clevis hook
- HCG Clevis Shortening grab hook
- HEH eye hook with safety latch
- HES eye self locking hook
- HSS swivel self locking hook
- HEG eye shortening grab hook
- H14A Eye hook
- H3A swivel hook
- HEB eye bolt
- HEN eye nut
- HWDR weld on D ring
- HHRS Regular swivel
- HLBR Ratched Load binder
- HHLBS Lever Load Binder
- HHGH Grab hook Lashing
- HHGS Grab Hook Lashing
- HH Swivel Eye/Eye
- HH thrust Bearing Swivel Eye/Eye
- HH Screw pin Bow shackle G209
- HH Bolt & Nut Bow shackle G2130
- HH Screw pin Dee shackle G210
- HH Bolt & Nut Dee shackle G2150
- TBJJ Drop Forged Turnbuckle JAW/JAW
- TBEE Drop Forged Turnbuckle EYE/EYE
- TBHH Drop Forged Turnbuckle HOOK/HOOK
- TBJE Drop Forged Turnbuckle JAW/EYE
- TBHE Drop Forged Turnbuckle HOOK/EYE
- Aluminum ferrule ZEN
- Wire Rope Thimble EN 1344-1 / BS 464
- HH Wire Rope Heavy Duty US Forded Clips
- Commerial Wire Rope Clips
- HHOSS Open Spelter Socket
- HHCSS Closed Spelter Socket
- HHWS Wire Rope Wedged Socket

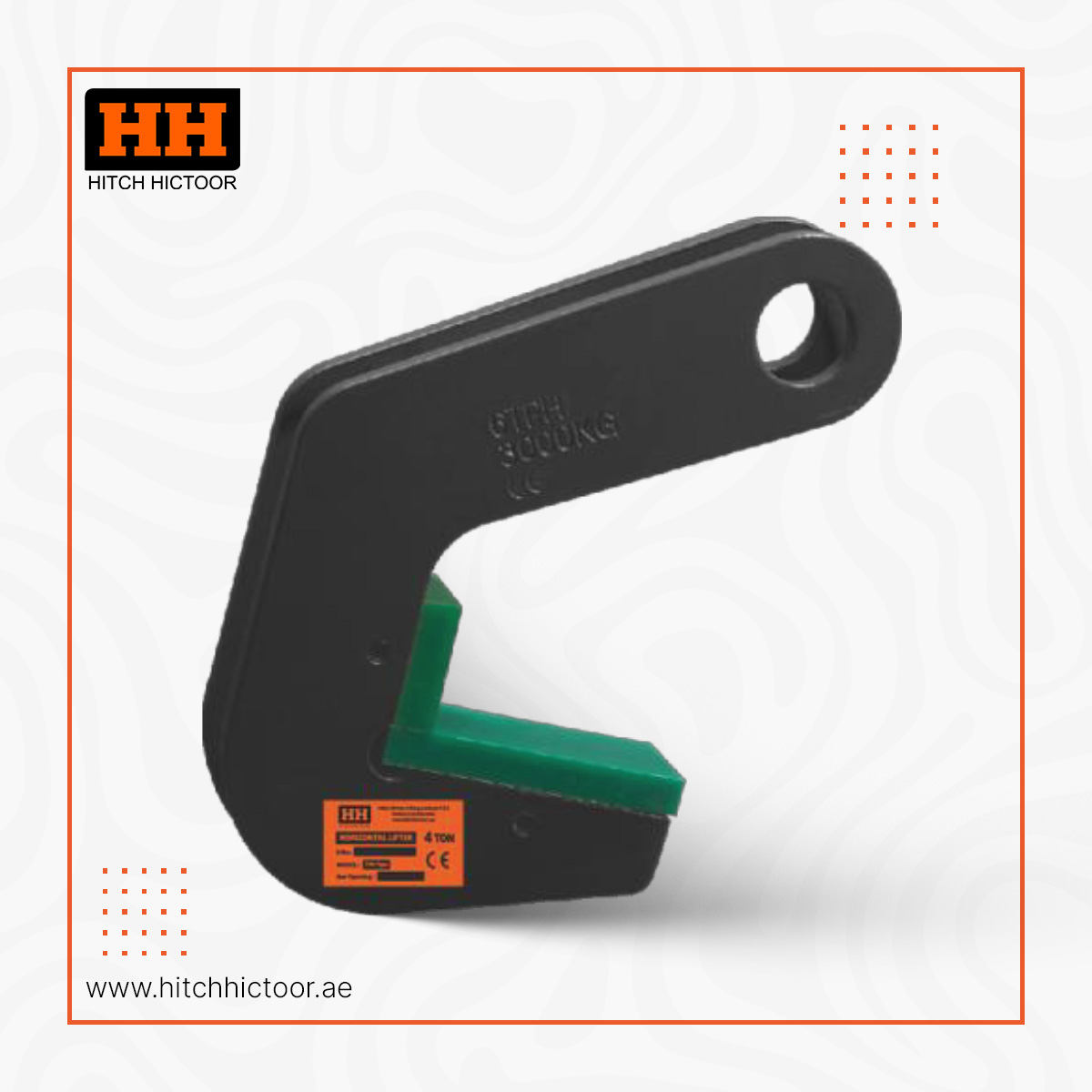

Pipe Lifting Clamps – TPH

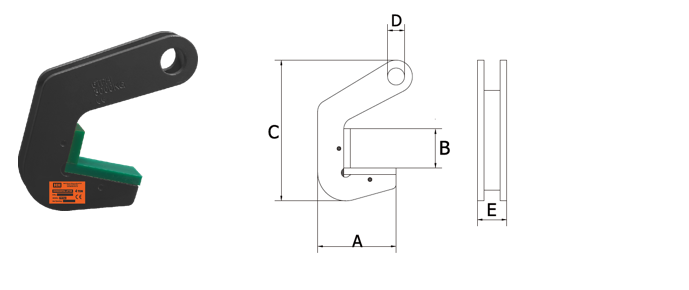

TECHNICAL DATA
| Product Code | Capacity Per Pair | R | A | B | C | D | E | T | Weight |
| kgs | mm | mm | mm | mm | mm | mm | mm | kgs / pair | |
| TPH1.5T | 1,500 | 40 | 127 | 30 | 220 | 70 | 35 | 27 | 1.8 |
| TPH3T | 3,000 | 40 | 142 | 32 | 228 | 70 | 35 | 27 | 2.9 |
| TPH4T | 4,000 | 50 | 144 | 32 | 228 | 70 | 40 | 30 | 4 |
| TPH6T | 6,000 | 50 | 152 | 34 | 232 | 70 | 40 | 30 | 5 |
| TPH8T | 8,000 | 70 | 155 | 34 | 260 | 70 | 42 | 30 | 6.7 |
| TPH12T | 12,000 | 70 | 175 | 36 | 322 | 70 | 46 | 33 | 10 |
| TPH16T | 16,000 | 70 | 175 | 36 | 322 | 70 | 56 | 40 | 13 |
